Configuring station metadata

Introduction

wis2box requires station metadata to be able to process and publish observations to WIS2. This session will walk you through creating and publishing station metadata from wis2box from a configuration file. wis2box uses a fixed station metadata list that is used as part of its runtime operation.

Preparation

Note

Ensure you are logged into the wis2box-management container on your student VM:

cd ~/exercise-materials/wis2box-setup
python3 wis2box-ctl.py login

Creating station metadata

Update the file ~/exercises-metadata/test-data/metadata/station/station_list.csv, adding your new station:

vi ~/exercises-metadata/test-data/metadata/station/station_list.csv

For each new station, add a row to the end of the file with the following values:

  • station_name: the human readable name of the station
  • wigos_station_identifier: the WSI issued for the station
  • traditional_station_identifier: the traditional station identifier if a WSI does not exist
  • facility_type: the station/platform type (use Land (fixed) for land stations)
  • latitude: the latitude, in decimal degrees
  • longitude: the longitude, in decimal degrees
  • elevation: station elevation, in metres above sea level
  • territory_name: the human readable country name
  • wmo_region: the Roman numeral of your country based on WMO Regional Associations

Tip

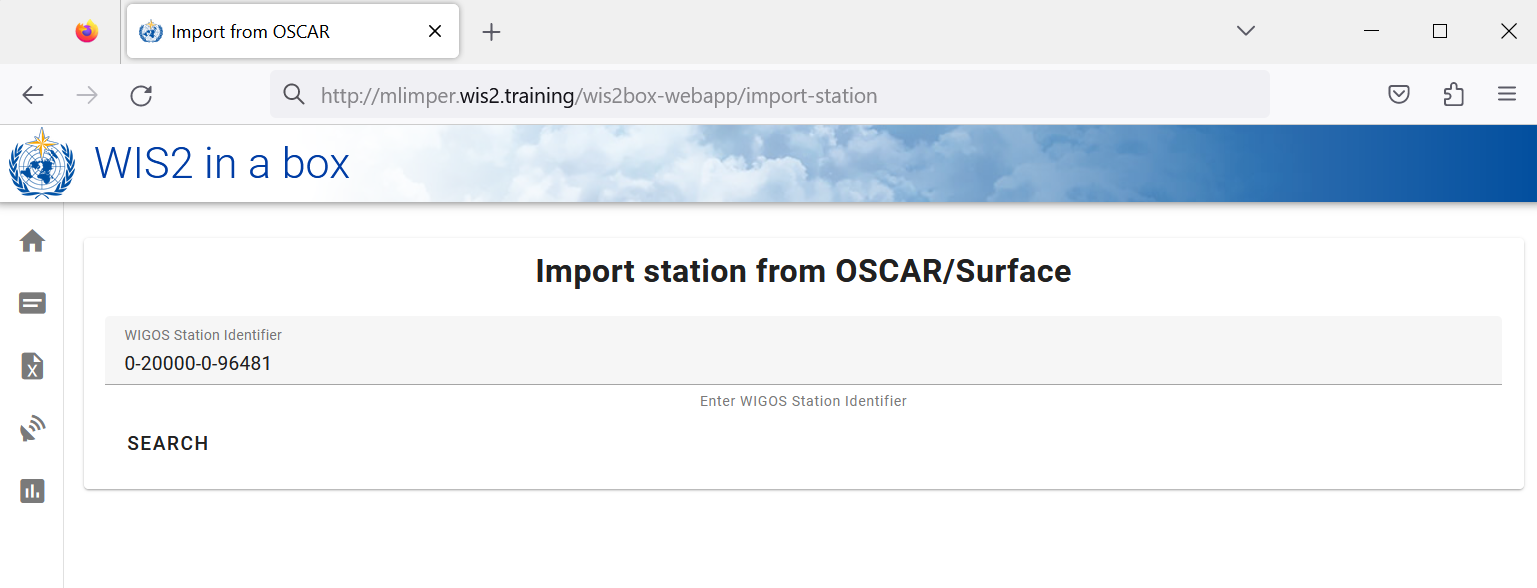

You can also derive your station information from the WMO OSCAR/Surface system.

Tip

Ensure that latitude and longitude values are correctly signed (for example, use the minus sign [-] for southern or western hemispheres.

Publishing station metadata

Run the following command to publish your station metadata:

wis2box metadata station discovery publish-collection

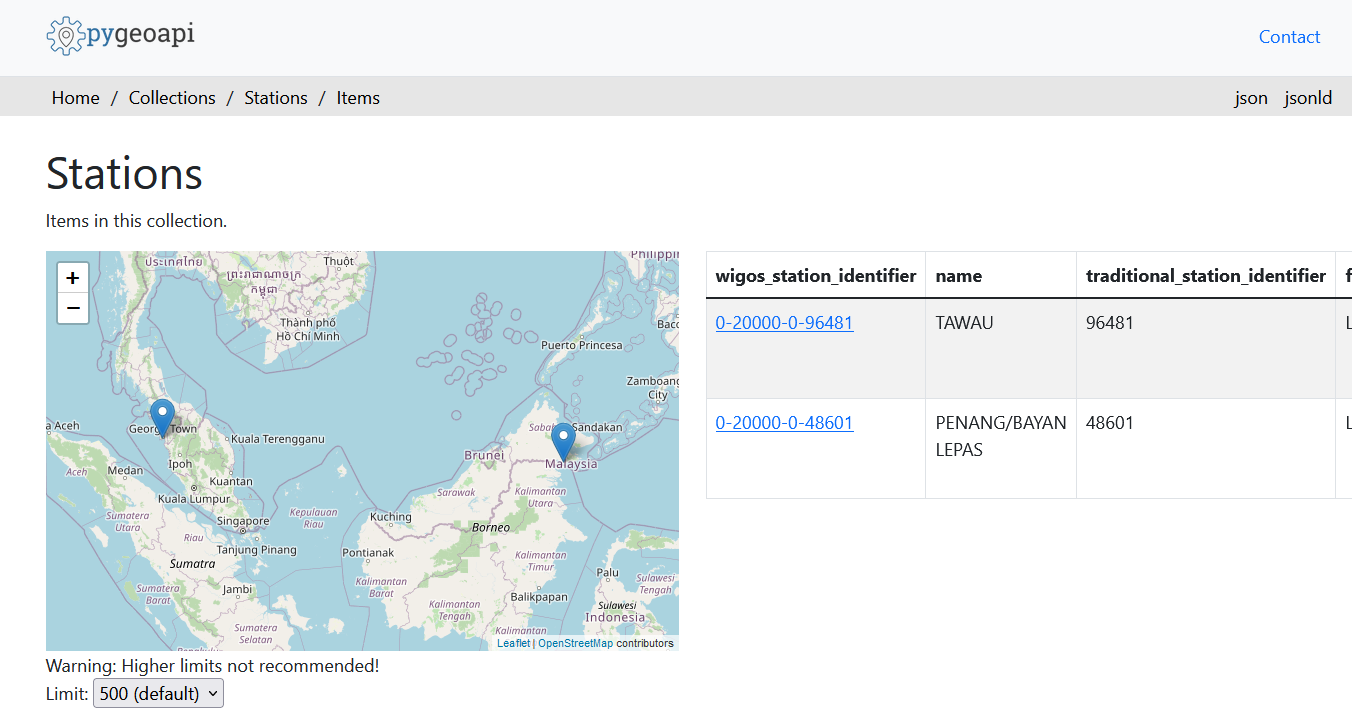

Ensure that your new station metadata was published to the API, by navigating to http://<your-host>/oapi/collections/stations.

Question

Do you see your new station metadata?

Click on your station metadata record and inspect the content, noting how it relates to the station list configuration updated earlier in this session.

Conclusion

Congratulations!

In this practical session, you learned how to:

  • update station metadata
  • publish station metadata
